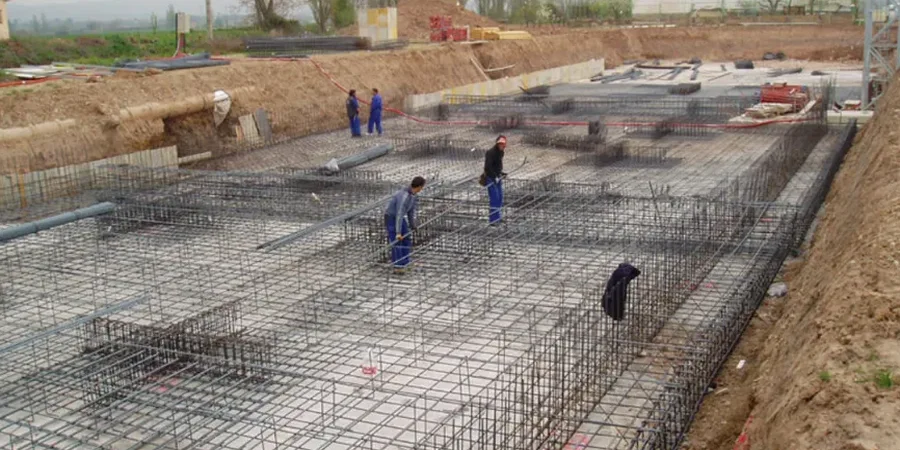

Shallow Foundation Design for Adelaide's Reactive Soils

Adelaide sits on deep clay formations—principally Keswick Clay and Hindmarsh Clay—that contain a high proportion of smectite minerals. These clays swell significantly when they absorb water during winter and shrink during the long dry summers, generating vertical movements that can easily exceed 30 mm. The design of a shallow foundation must account for this movement by either stiffening the footing system to resist distortion or isolating the slab from the moisture-affected zone. AS 2870 classifies sites based on the predicted characteristic surface movement (ys), and the resulting class—typically M, H1, or H2 in Adelaide—dictates the beam depth, reinforcement, and slab articulation required.

The choice comes down to the site classification, the slope, and the depth of the reactive zone. On flat sites classified as M or H1, a waffle pod slab often provides a cost-effective solution because it decouples the slab from the ground and reduces the volume of concrete. On steeper slopes, or where the reactivity class reaches H2, a stiffened raft with deep perimeter beams is usually more appropriate because it provides greater rigidity and better resistance to lateral soil movement. We also factor in the presence of trees: a large eucalypt near the building footprint can increase the effective suction change and push the design toward a more conservative edge-beam solution.

The Adelaide Hills introduce additional variables: steeper gradients, colluvial soils, and a higher likelihood of encountering bedrock at shallow depth. Our standard investigation includes boreholes to at least the depth of the reactive zone plus the depth of significant imposed load, laboratory testing for Atterberg limits and linear shrinkage, and a slope stability assessment where the cross-fall exceeds 10 degrees. We also review the council's landslide overlay maps, which cover significant portions of the Hills Face Zone. The investigation report then feeds directly into the footing design, specifying the founding depth, the allowable bearing pressure, and any requirement for retaining walls or subsoil drainage.

For a standard residential project on a single-dwelling lot, the combined cost of the site investigation, laboratory testing, and engineering design for a shallow foundation typically falls between AU$2,730 and AU$5,420. The final figure depends on the number of boreholes, the reactivity class, and whether additional assessments—such as a slope stability review or a suction profile—are required by the council's planning conditions.
